Windhager UK

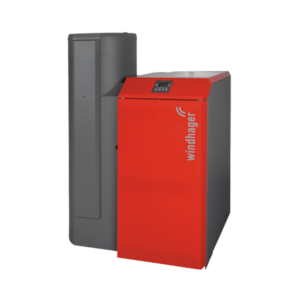

BioWIN 502T

HETAS ID: J52646
App. Type: Independent Boilers
Fuel Type: Wood Pellets
Certificate Ref: AA-2022-12/03
Std. Tested to: EN-303-5:2012
Hearth Req: Constructional
Manufacturer Address: Tormarton Road, Marshfield, Chippenham, South Gloucestershire, SN14 8SR
Manufacturer Email: [email protected]
Telephone Number: 01225 892 211

Performance

HETAS has audited and verified that all applicable clauses in the test report have been passed in respect of the materials, design, and construction in accordance with the relevant BS EN type test standard for the appropriate technology, performance criteria of which is below;

Net Efficiency - Wood Pellets - Full Load 92.9%
Gross Efficiency - Wood Pellets - Full Load 85.9%
Net Efficiency - Wood Pellets - Part Load 92.8%
Gross Efficiency - Wood Pellets - Part Load 85.8%

Environment

In support of reducing the impacts of particulate emissions on the UK's overall air quality targets, HETAS “Cleaner Choice” appliances have been independently verified as exceeding the current requirements for UK smoke control areas for particulate matter, including PM2.5's by 50% of that required by DEFRA;

92%

Improvement on Clean Air Act Particulate Limit – Full Load

94%

Improvement on Clean Air Act Particulate Limit – Part Load

Safety

The product certified has been assessed for its suitability for installation in domestic properties against the requirements of the Building Regulations and appropriate standards. The performance of the appliance has been verified as meeting the following technical performance attributes;

Combustible Clearances - Rear PASS mm
Combustible Clearances - Side PASS mm
Hearth Temperature > PASS
Appliance Spigot SIze 150 mm
Recomended Flue Draught -5Pa
External Air Supply Compatible *No
Tool Required for Refue/De-Ash No
Flue Draught test Point No

*HETAS product approval is not valid for appliances fitted with an external air supply ducted directly to the appliance. The installer should reference HETAS technical note TN_0020 General Guidance for the Installation, Risk Assessment & Commissioning of Solid Fuel Appliances with a Dedicated External Air Supply for more information.

Technical Data

The purpose of this HETAS Stove Approval Scheme is to help consumers, retailers, installers and others to identify stoves with lower particulate (PM) emissions. There are concerns that small particle emissions known as PM2.5 to PM10 can be harmful. For that reason, we are operating a scheme which only accepts appliances that are tested to emit lower emissions compared to the current legal requirements. We have chosen to set the bar for entry at 50% less emissions than required for exemption for use in smoke control areas in the UK. We also note that Ecodesign legislation has differing, but important limits for other emission and any appliances listed here must meet those requirements as well as exceeding the particulate emission values for exemption by at least 50%.

Additionally, the product certified has been assessed for its compliance against the legal requirements for emissions and efficiency stipulated within the Ecodesign regulations. The performance of the appliance has been verified as meeting the following environmental attributes;

PM - Wood Pellets 16 mg/m3
OGC Emissions - Wood Pellets 1 mg/m3
CO Emissions - Wood Pellets 88 mg/m3
NOx Emissions - Wood Pellets 140 mg/m3
Seasonal Efficiency - Wood Pellets 82%
Energy Label Ratings A+
